LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
| Lieu d'origine | Guangdong, Chine |
|---|---|
| Nom de marque | LDSK |
| Numéro de modèle | Ldskwk02 |
| Quantité de commande min | 1 |
| Prix | $400 |
| Détails d'emballage | CARTON |
| Délai de livraison | 1 journée de travail |
| Conditions de paiement | D / A, D / P, T / T, Western Union, Moneygram, PayPal |
| Capacité d'approvisionnement | 5000pcs par mois |
Contactez-moi pour des échantillons gratuits et des coupons.
Je suis désolé.:0086 18588475571
Wechat: 0086 18588475571
Skype est là.: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Bande de fréquence de détection | 300 MHz – 6 200 MHz | Rayon de détection | ≥ 1 km (conditions typiques) |
|---|---|---|---|
| Temps de réponse | 3 ~ 5S | Temps d'endurance | 3 ~ 4h |
| Souligner | Dispositif de détection anti-drone 6000 MHz, dispositif de détection anti-drone portable | Modes d'alarme | Casque, alarme sonore et lumineuse |
| Capacité du journal d'alarme | ≥ 500 enregistrements d'alarme | Durée de vie de la batterie | ≥ 6 heures (batterie unique) |
| Mettre en évidence | Lightweight Portable Drone Detector,High Sensitivity UAV Detector,Long Battery Life Drone Detector |
||
Description de produit

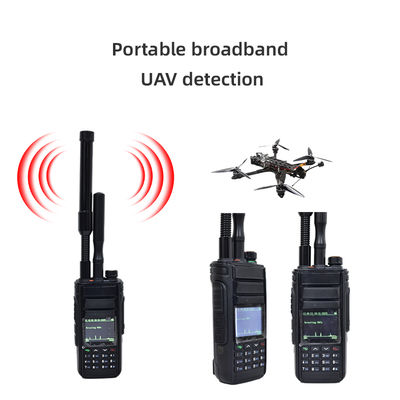

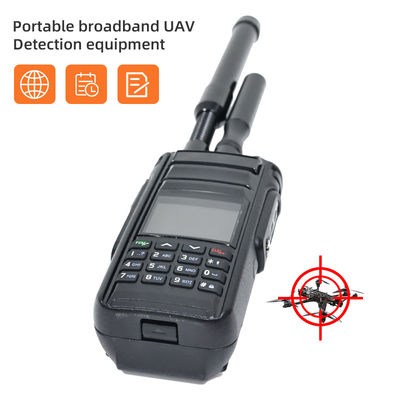

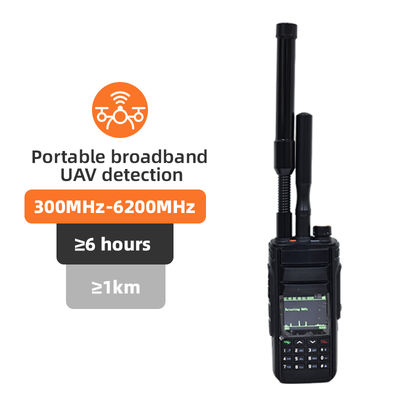

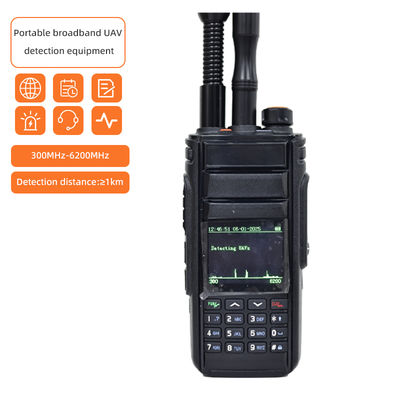

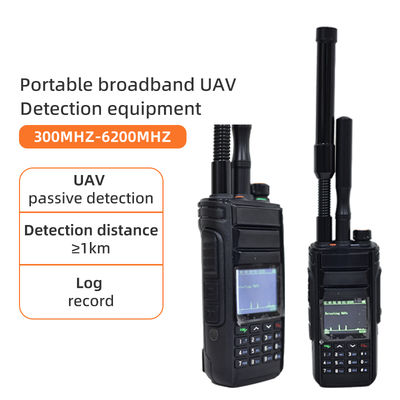

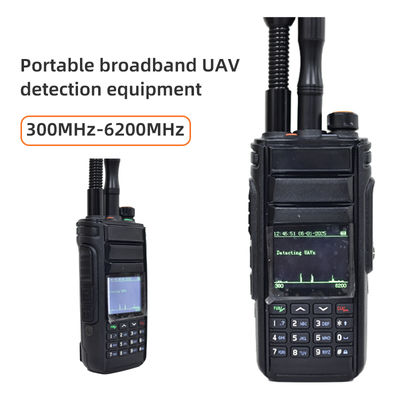

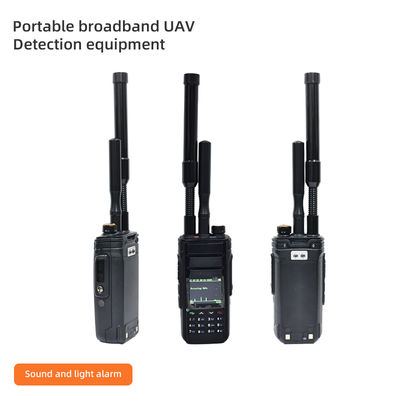

LDKW07 Portable Drone Detector — 300–6200 MHz FPV & DJI UAV Detection System
Product Overview
The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.
Key Benefits (Why choose LDKW07)
-
Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.
-
Long detection distance: reliably detects drones at ≥1 km under typical conditions.
-
High sensitivity: detection sensitivity better than -96 dBm for weak signals.
-
Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.
-
Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.
-
Low false alarms: multi-channel scanning + dual antenna design reduces false positives.
-
Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.
-
Multi-language UI: English, Chinese, Russian.
Main Functions & Features
-
Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.
-
Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).
-
Real-time spectrum display: Visualize signal strength across 300–6200 MHz.
-
Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.
-
Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.
-
Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.
Technical Specifications
| Item | Description |
|---|---|
| Model | LDKW07 |
| Receiving Frequency Range | 300 MHz – 6200 MHz |
| Detectable Signal Types | OFDM HD image transmission and FM analog image transmission (FPV) |
| Detection Distance | ≥ 1 km (typical conditions) |
| Detection Sensitivity | Better than -96 dBm |
| Alarm Modes | Headphones, sound and light alarm |
| Alarm Log Capacity | ≥ 500 alarm records |
| Upgrade / Data Export Interface | MicroUSB |
| Power Supply | Removable lithium battery (Type-C charging) |
| Battery Life | ≥ 6 hours (single battery) |
| Display Interface | Built-in screen, supports English/Chinese/Russian |
| Operation Modes | Default scan / Key frequency scan / Custom frequency scan |
| Dimensions (Host) | 135 × 60 × 35 mm (excluding antenna) |
| Weight | ≈ 500 g (including one battery) |
| Working Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | ≤ 90% RH (non-condensing) |
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Dongguan City, China.
Q: What shipping methods are available?
A: We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
Q: What is the typical delivery time?
A: Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Q: Can I customize labels and logos?
A: Yes, we support custom labeling and branding.
Q: What is your minimum order quantity?
A: MOQ ranges from 1 to 20 sets depending on your requirements.
Q: What if I receive a defective product?
A: We maintain strict quality control but will address any issues promptly with replacements or compensation.
